Solar Panel: Mono 160W with connectors

Select options to show price
Sale price€145,00
In stock

These high quality monocrystalline solar panels are ideally suited for motorhome/caravan, boats, sheds, garage... to keep your battery bank charged without starting the generator or plugging in to an external source. They come with MC4 connectors so they can easily be wired in series, or in parallel using our Y splitters and/or cable extensions.

Having a Vmp of 18 volts, they can be used with either PWM or MPPT charge controllers.

Product Features and Benefits:
1.  Higher energy yield
-Outstanding performance at low irradiance
-Maximum energy yield at low NOCT

2.  Increased system reliability:
-Enhanced system performance stability with PID resistant technology
-Enhanced system reliability in extreme temperature environment with special cell level stress release technology
-Great for solar off-grid applications from marine-related to dry camping

Specifications:


Peak Power: 160W
Power Allowance Range: 5%
VOC – Open Circuit Voltage: 21.8V
VMP – Max Power Voltage: 18.24V
ISC – Short Circuit Current: 9.2A
IMP – Max Power Current: 8.77A
Max System Voltage: 1000V

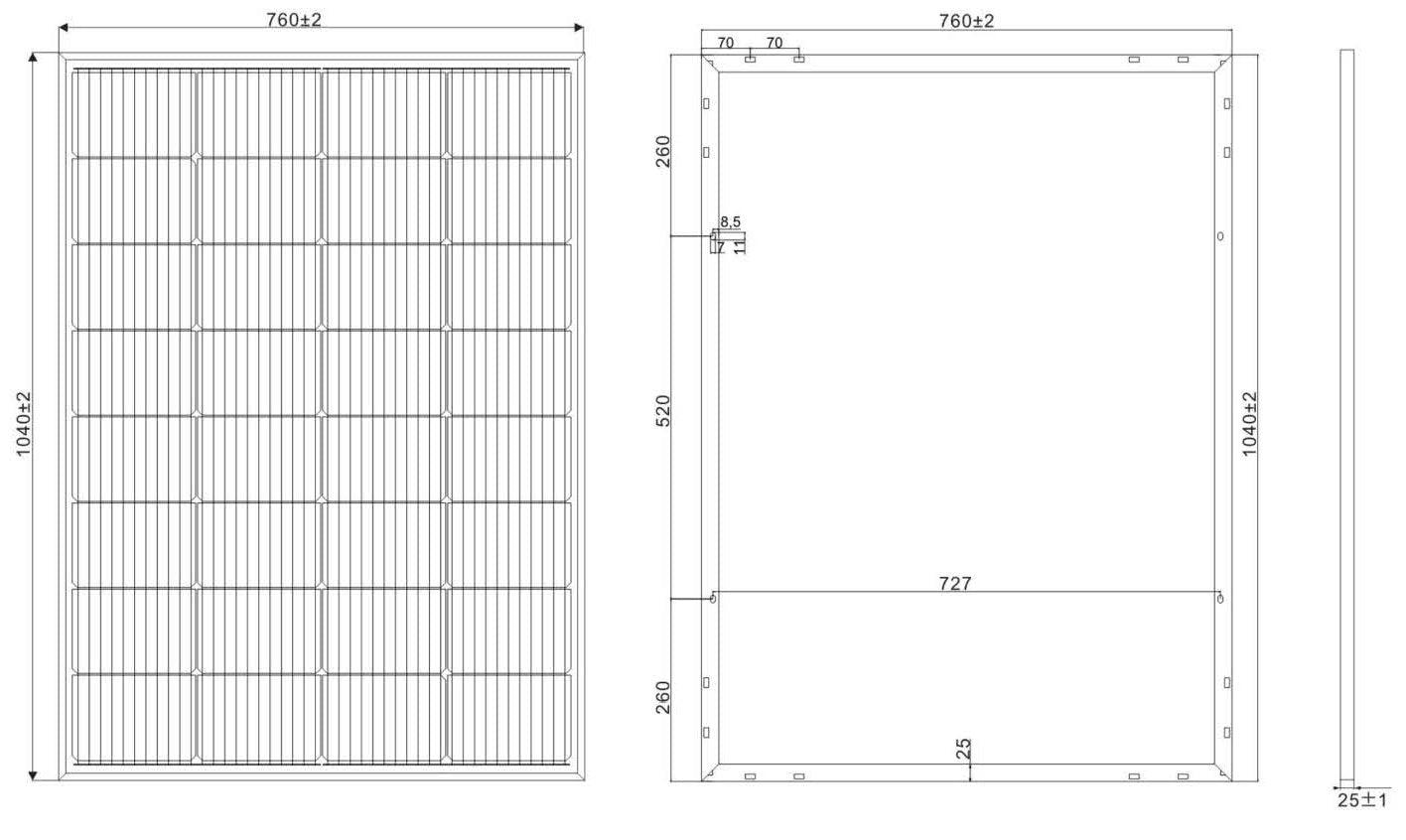

Panel Size:  760*1040*30mm
Weight: 7.15kg

10 years Warranty
